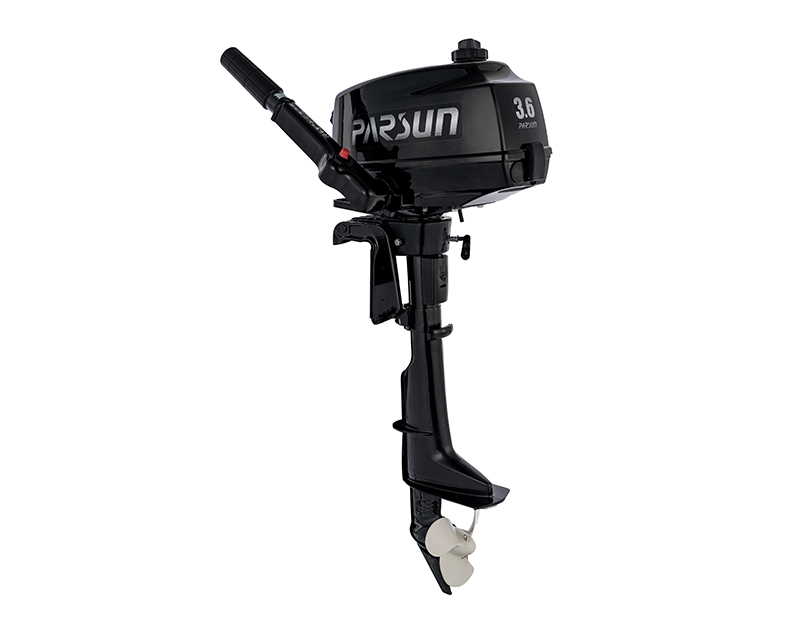

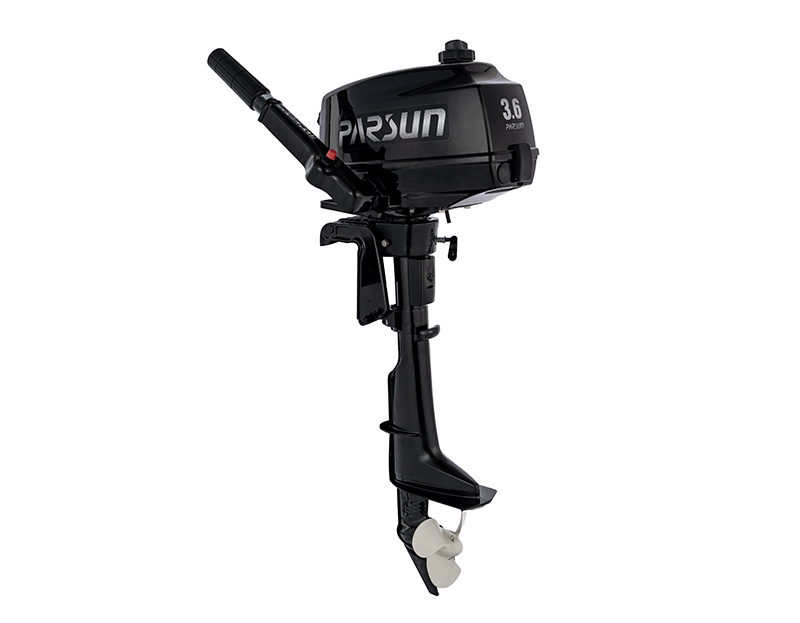

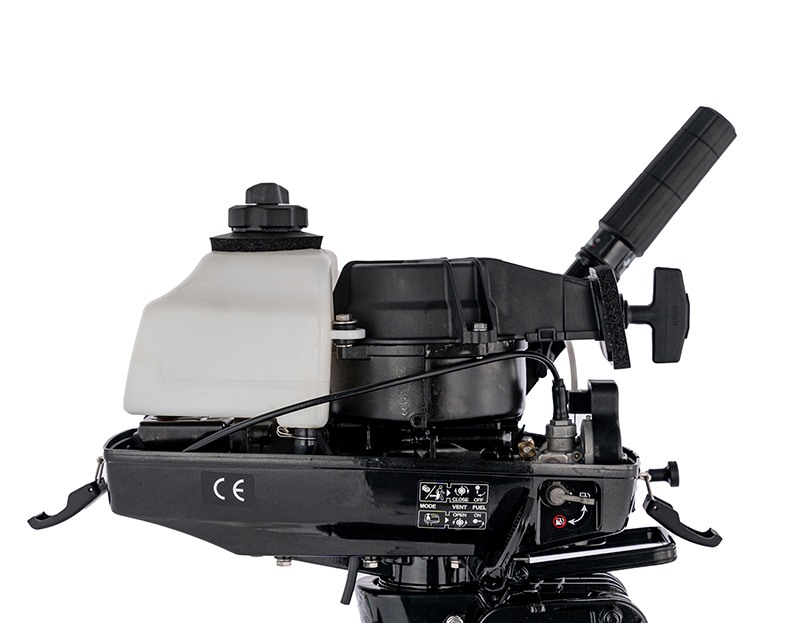

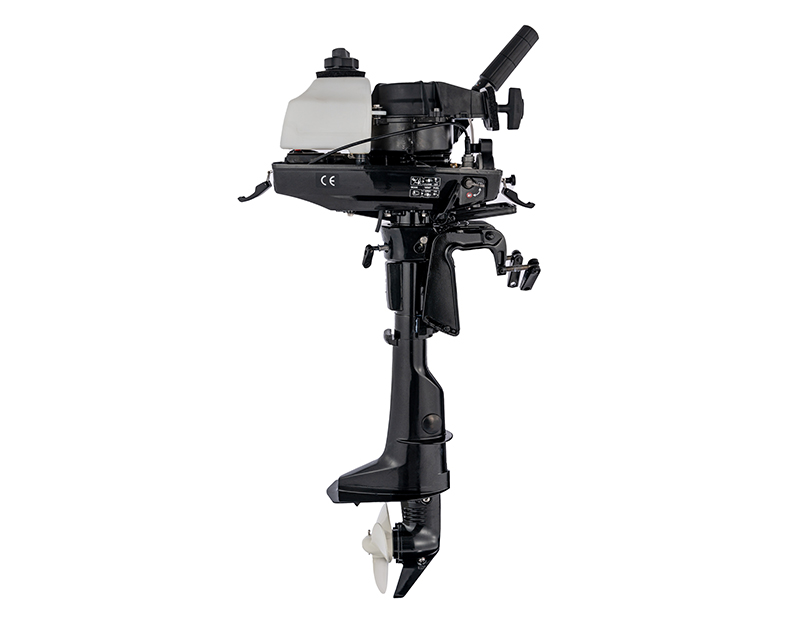

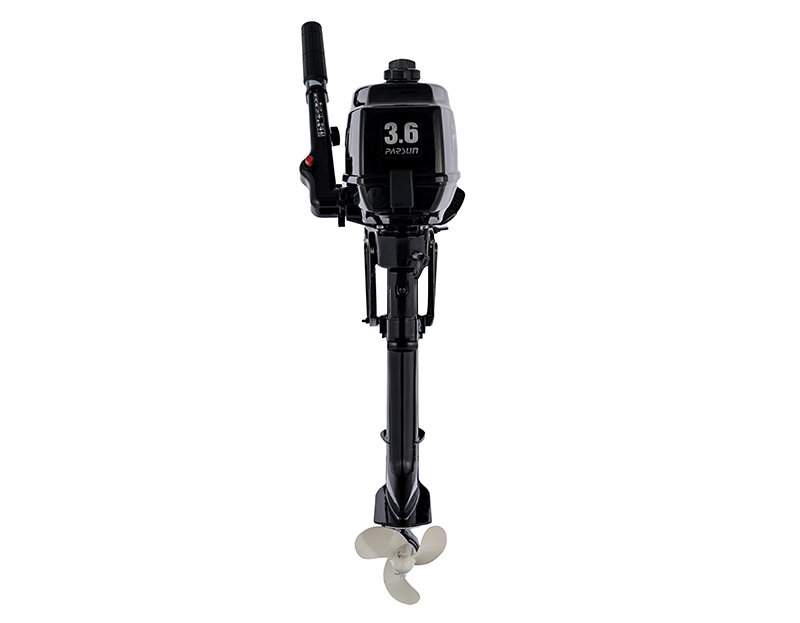

T3.6 Outboard Motor

The T3.6 is also a small two-stroke outboard motor, suitable for personal use on small boats. Lightweight, easy to operate and low fuel consumption, it can meet your needs whether you are fishing or going out for a swim. As for reliability and durability, you can be completely assured.

Category: 2-Stroke Outboards

Previous Product Next Product

Product Features

Excellent portable outboard propulsion

1. Two stroke engine with water-cooling system makes a excellent power output and stable performance.
2. As a small outboard motor, T3.6 has light weight, small size, so it is easy to carry, transport and store.
3. Simple structure, mature technology, excellent performance.
4. TCI ignition, easy to start.
5. Adopt marine-grade anti-corrosion material to enhance durability.

SPECIFICATIONS

Model	T3.6
Specs Opitons	T3.6BMS / T3.6BML
Transom Height	15in./20in.
Dry Weight	14.5-15.5Kg
Max. RPM range	4200～5300r/min
Max. Outpower	2.64kW（3.6HP）@4500r/min
Idling RPM range	1450～1550 r/min
Engine type	L1
Displacement	74.6cc
Bore X stroke	47.0×43 mm
Ignition Timing	TCI
Steering System	Tiller handle
Starting System	Manual start
Gear Shift	F-N
Gear Ratio	2.08
Trim &Tilt	Manual
Fuel Tank Capacity	Built-in 1.5L
Max. Fuel Consumption	1.8L/h
Gear Oil Capacity	100cc
Mixing Ratio	50:1
Propeller	3-6"in.
Parameter description. 1.The propeller should be selected according to the size and usage of the boat. 2. B=Back control (tiller handle), M=Manual starting, S=short shift, L=long shift
