DESCRIPTION
DESCRIPTION

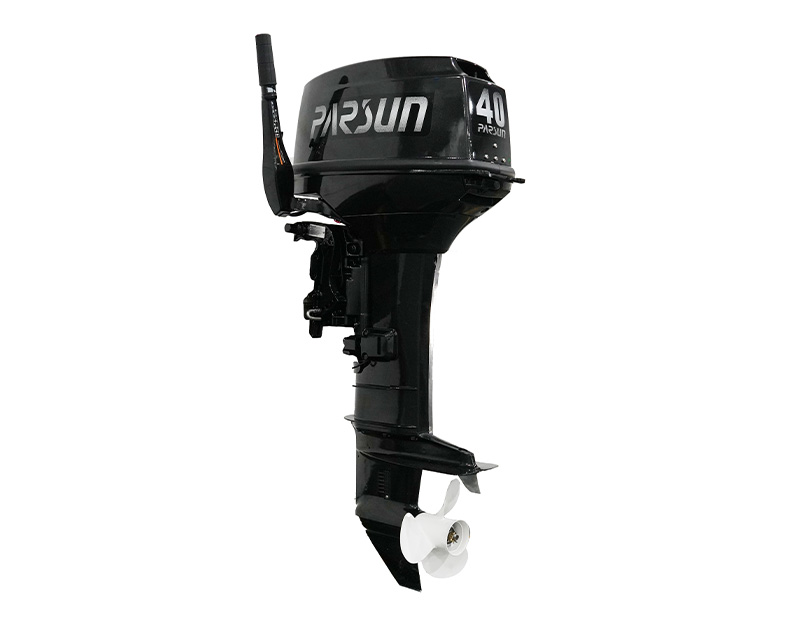

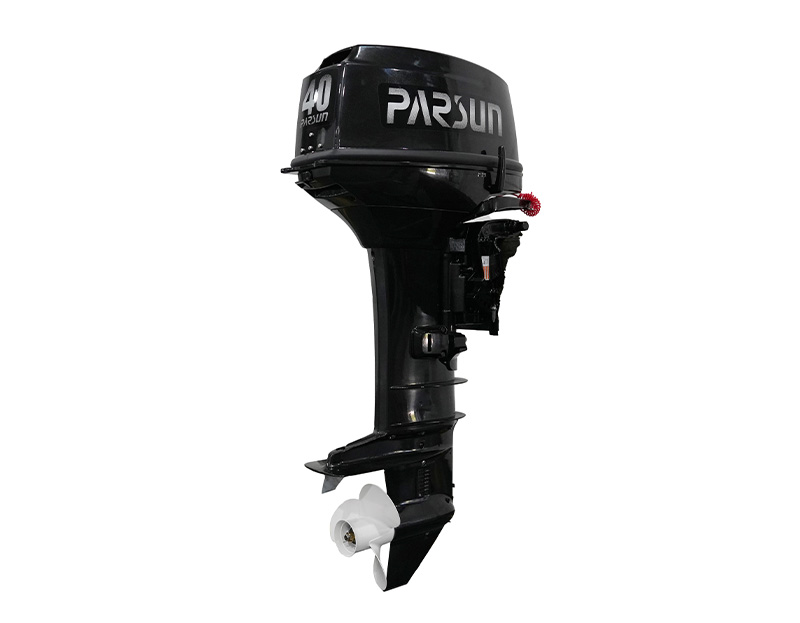

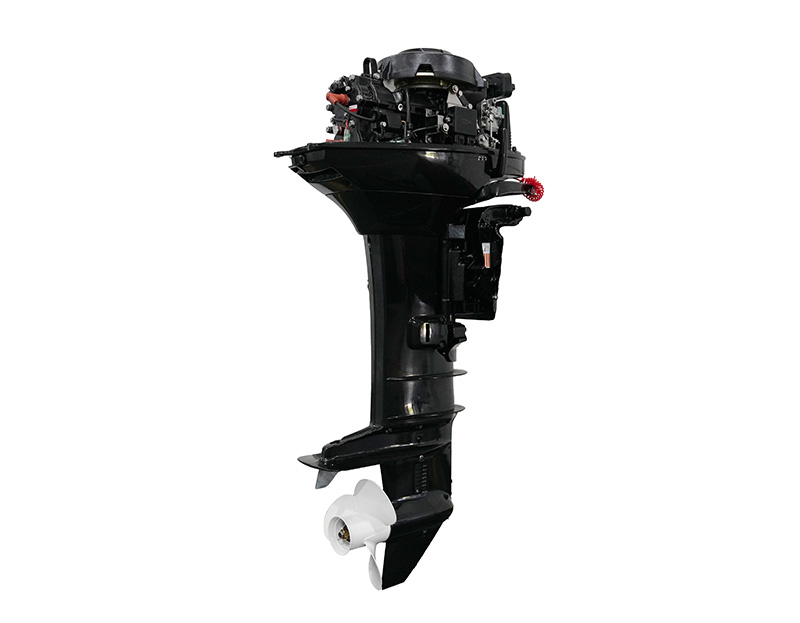

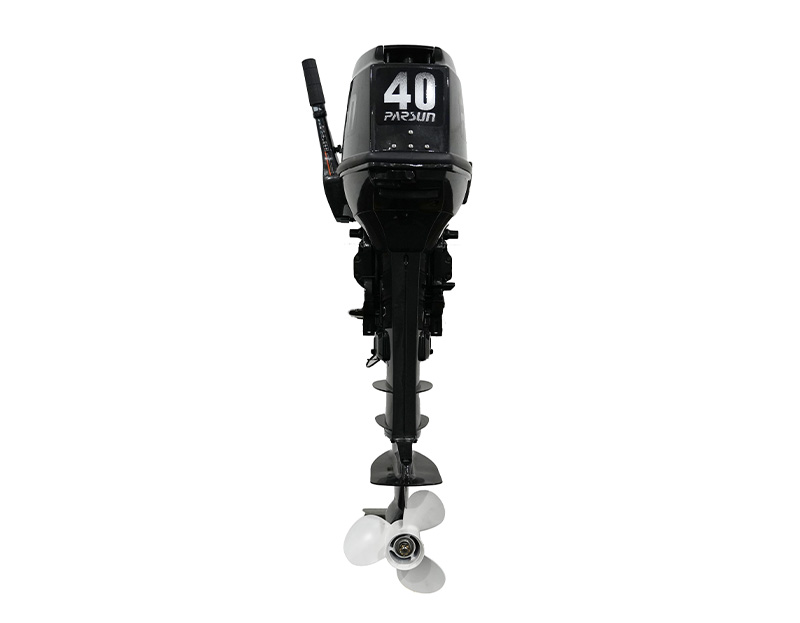

The T40J is Parsun's earliest 40hp two-stroke outboard motor, designed in response to the needs of the fishery industry. It features easier maneuverability, superb performance stability and load capacity, a simple structure, and the lightest weight in its class, resulting in outstanding fuel economy. With this outboard motor, you will reach your destination quickly and be able to bring more fish back home.
Category: 2-Stroke Outboards
Features

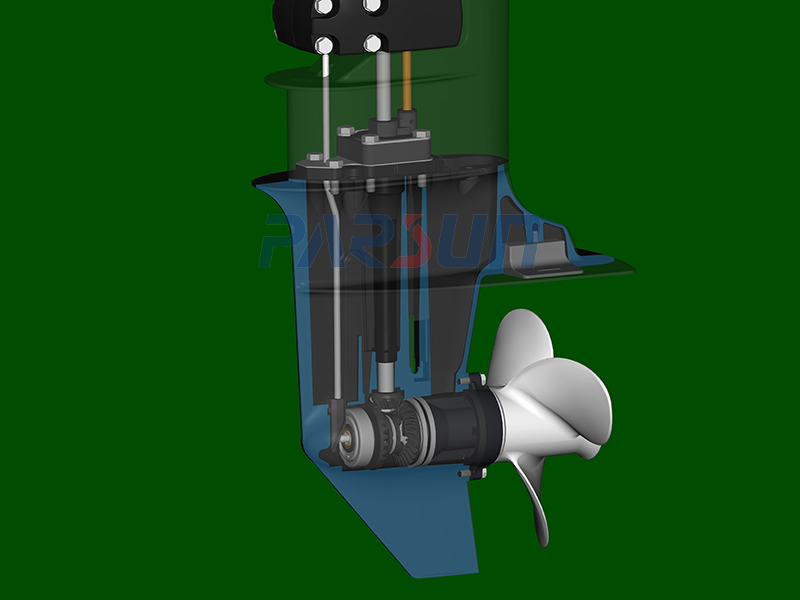

the advantage of big gear ratio
The outboard motor adopts a new gear combination optimization scheme, and the large gear ratio can effectively improve the low-speed torque and maximum speed, so that the outboard motor has excellent performance under heavy load conditions. At the same time, the combined gear of the underwater propulsion device is easy to disassemble and maintain. These are very important for business users.
1. Simple structure. Compared with the four stroke outboard motors, the two stroke outboard motors have no too many circuits.
2. Light weight. In the same horsepower class, the two stroke outboards are much lighter than the four stroke outboards.
3. Stable performance. Thanks to the simple structure and mature technology, the two-stroke outboard engine has stable performance, is not prone to failure and has better durability.
4. Easy to repair and maintain with low cost.
SPECIFICATIONS
| Model | T40J | ||
| Specs Options | T40JBMS/T40JBML/T40JFWS/T40JFWL/T40JBWS/T40JBWL | ||
| Transom Height | 15in./20in. | ||
| Dry Weight | 65.8-69.3Kg | ||
| Max. RPM range | 4500～5500r/min | ||
| Max. outpower | 29.4kW（40HP）@5000r/min | ||
| Idling RPM range | 1100～1200 r/min | ||
| Engine Type | L 2 Reed Valve | ||
| Displacement | 669c | ||
| Bore X Stroke | 78.0×70.0 mm | ||
| Ignition Timing | CDI | ||
| Steering System | Tiller handle | ||
| Starting System | Manual start/Electric start | ||
| Gear Shift | F-N-R | ||
| Gear Ratio | 1.85 | ||
| Trim &Tilt | Manual/Electric | ||
| Fuel Tank Capacity | 24L | ||
| Max. Fuel Consumption | 20L/h | ||
| Gear Oil Capacity | 315cc | ||
| Mixing Ration(Fuel:Oil) | 50:1 | ||
| Propeller* | 3-11" | ||
| Parameter description: 1. B=Back Control(Tiller controk), M=Manual start, S=Short shaft, L=Long shaft, W=Manual starting and electric starting | |||
