DESCRIPTION
DESCRIPTION

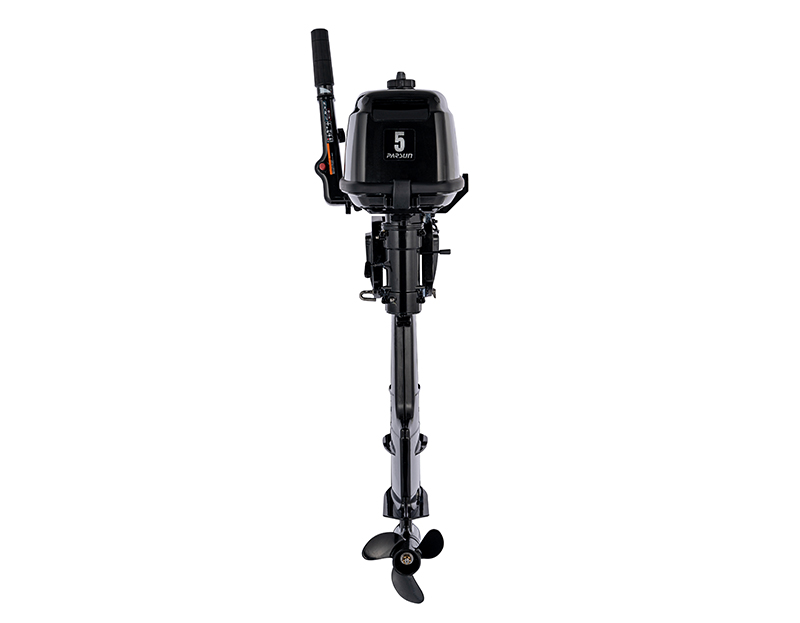

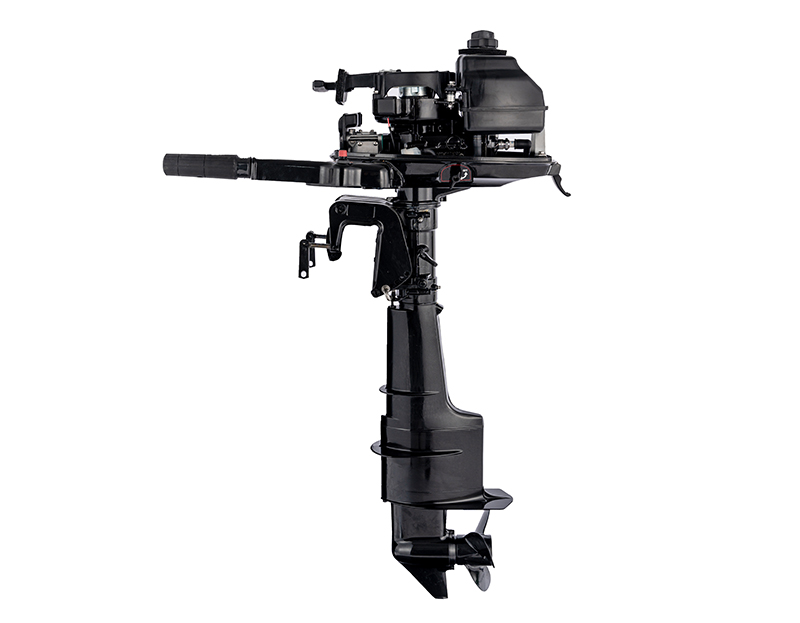

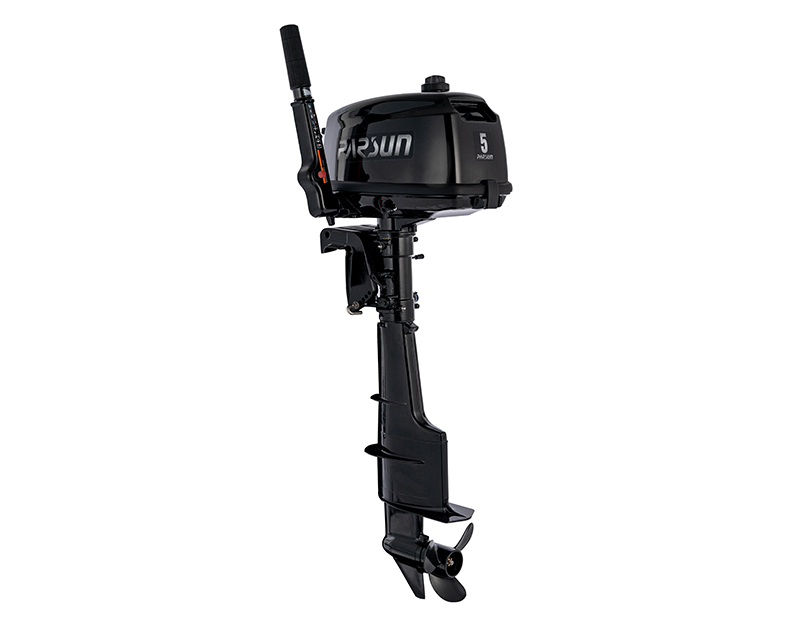

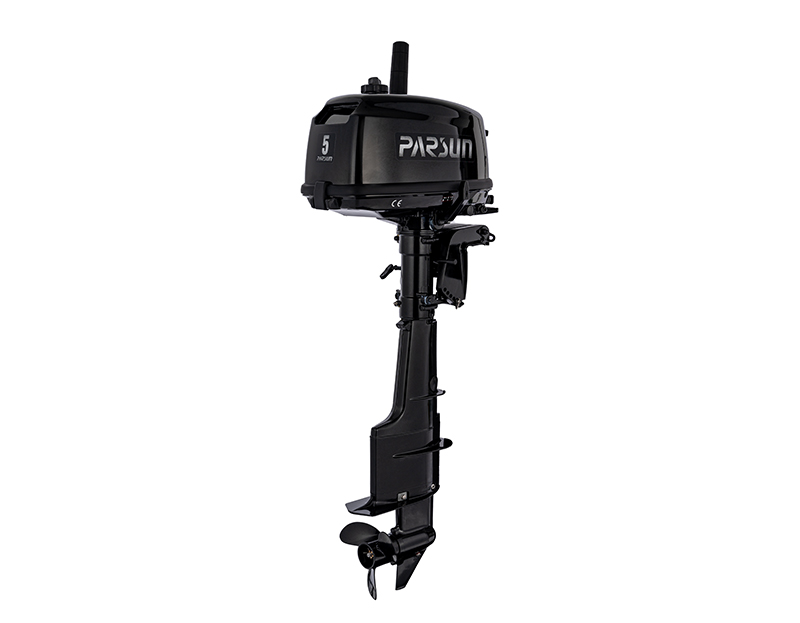

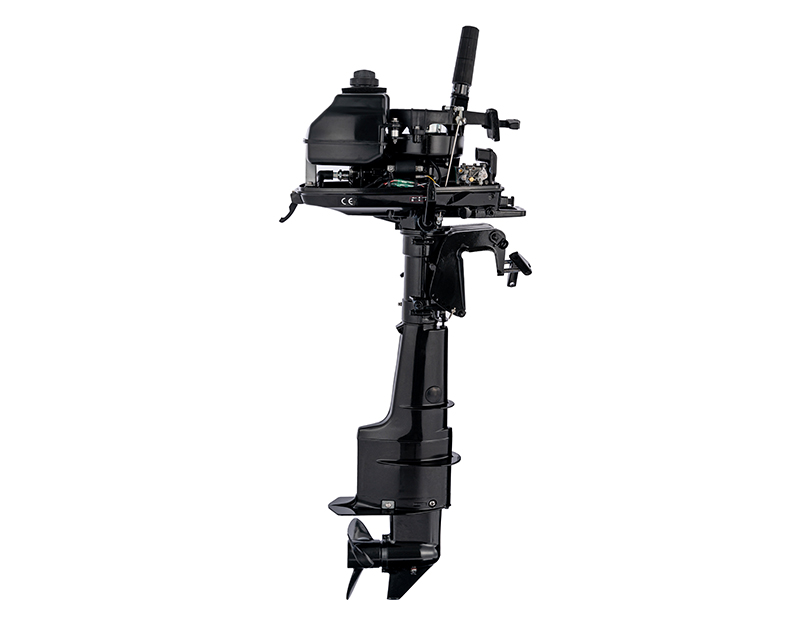

T5 is a small two-stroke outboard motor, only 5hp, suitable for personal and famly water recreation by small boats. Lightweight, easy to operate and low fuel consumption, it can meet your needs whether you want to fish or go out for a swim. In addition, you are assured of its reliability and durability.
Category: 2-Stroke Outboards
Features
Portabl & Powerful & Reliable
1. Light weight and small size, you can move it easily.
2. Stable performance and reliability make it worry-free for you to use.
3. Although it is munual starter, but only little strength needed to pull the starter cope.
4. Adopt marine-grade anti-corrosion material to enhance durability.
5. Less cost of maintennance, because the outboard motor has a simple structure.
6. Powerful enough to drive a rubber less than 3 metres.
SPECIFICATIONS
| Model | T5 | |
| Specs Options | T5BMS/T5BML | |
| Transom Height | 15in./20in. | |
| Dry Weight | 20Kg | |
| Max. RPM Range | 4500～5500r/min | |
| Max. Outpower | 3.64kW（5HP）@5000r/min | |
| Idling RPM range | 1000～1100 r/min | |
| Engine Type | L1 | |
| Displacement | 74.6cc | |
| Bore X Stroke | 55.0×43 mm | |
| Ignition Timing | CDI | |
| Steering System | Tiller handle | |
| Starting System | Manual start | |
| Gear Shift | F-N-R | |
| Gear Ratio | 2.15 | |
| Trim &Tilt | Manual | |
| Fuel Tank Capacity | Built-in 2.7L | |
| Max. Fuel Consumption | 2.6L/h | |
| Gear Oil Capacity | 100cc | |
| Mix Ration | 50:1 | |
| Propeller | 3-6"or 7"in. | |
| Parameter description: 1. B=Back control ( tiller handle), M=Manual start, S=short shift, L=long shift | ||
