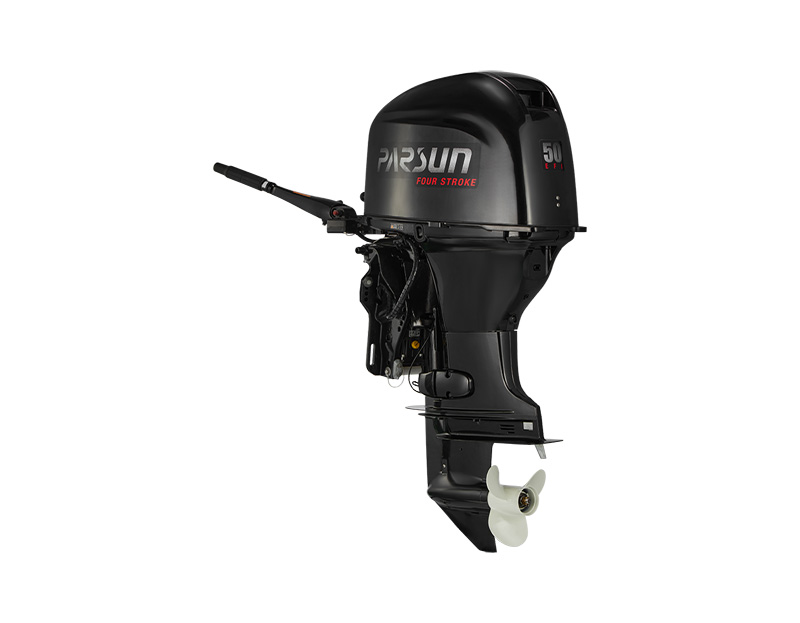

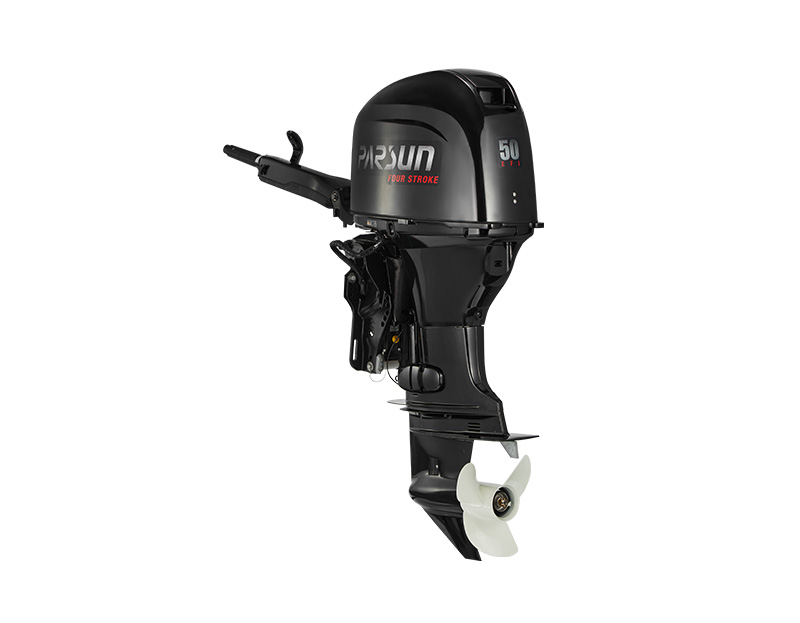

F50 EFI Outboard Motor

F50 is a midrange 50HP 4-stroke outboard motor, equipped with electronic fuel injection, can provide excellent fuel economy, easy start, slower trolling speed, quick throttle response, lower emission and very smooth rides on the water. The multi-fuction tiller handle allows you to access to an easy operatiion. Also you can choose remote control models as you like. Both them are easy to install and powerful to take you to haul around.

Category: 4-Stroke Outboards

Previous Product Next Product

FEATURES

● Fuel-water separator and fuel filter prevent any debris or water in the fuel from getting into the engine.
● Built-in freshwater flushing system provides easy routine flushing.
● High output 18 amp alternator for battery charging and fishing electronics.
● Multi point electronic fuel injection with ECM control delivers the precise fuel / air mixture for optimum combustion and provides smooth running.
● Warning & protection: Several different sensors continually monitor the critical engine's major functions. They will send out special signals to inform you in advance, such as over-revving, overheating, start-in-gear protection for safe engine starting, safety lanyard or low oil pressure, and automatically reduce the engine power to prevent damage.
1. Equipped with a reliable Delphi E.F.I. system and multifunction diagnostic scanner (scanner available as option), the outboard motor ensures high quality, long life and easily maintenance, while reducing your fuel and maintenance costs.
2. Through propeller hub exhaust and long shaft provides a smooth quiet operation.
3. Long-term durability of critical engine components: water cooling fuel system, stainless steel water pump housing liner and camshaft-driven engine oil pump ensure the outstanding durability.
4.Large displacement and single overhead cam increase the low-end power with smooth and strong performance, and help the operator get excellent acceleration even when pushing a heavy load.

SPECIFICATIONS

Model	F50
Specs Options	F50BEL-D/F50BEL-T/F50FEL-T
Transom Height	20.0in.
Weight	113-114.5Kg
Full Throttle Operating Range	5000～6000r/min
Maximum Putput	36.8kW（50HP）@5500r/min
Idling Speed	850～950 r/min
Engine Type	L4 SOHC
Displacement	996 cc
Bore*Stroke	65.0×75.0 mm
Ignition System	CDI
Control System	Tiller / Remote box
Start System	Electric start
Gear Positions	F-N-R
Gear Ratio	1.85
Trim And Tilt System	Gas Assist/Electric
Fuel Tank Capacity	24L
Max. Fuel Consumption	18.5L/h
Engine Oil Capacity	2.5L
Gear Oil Capacity	430cc
Propeller Potions	3-12"in or 3-13"in
Specs Options description: 1. The propeller shall be selected according to the size and purpose of the boat; 2. F in front of 40 means "four-stroke". B=Back control ( Tiller ) F=Front control E= Electric start L= Long shift
