Joy1.2 Electric Outboard Motor
Description
Description

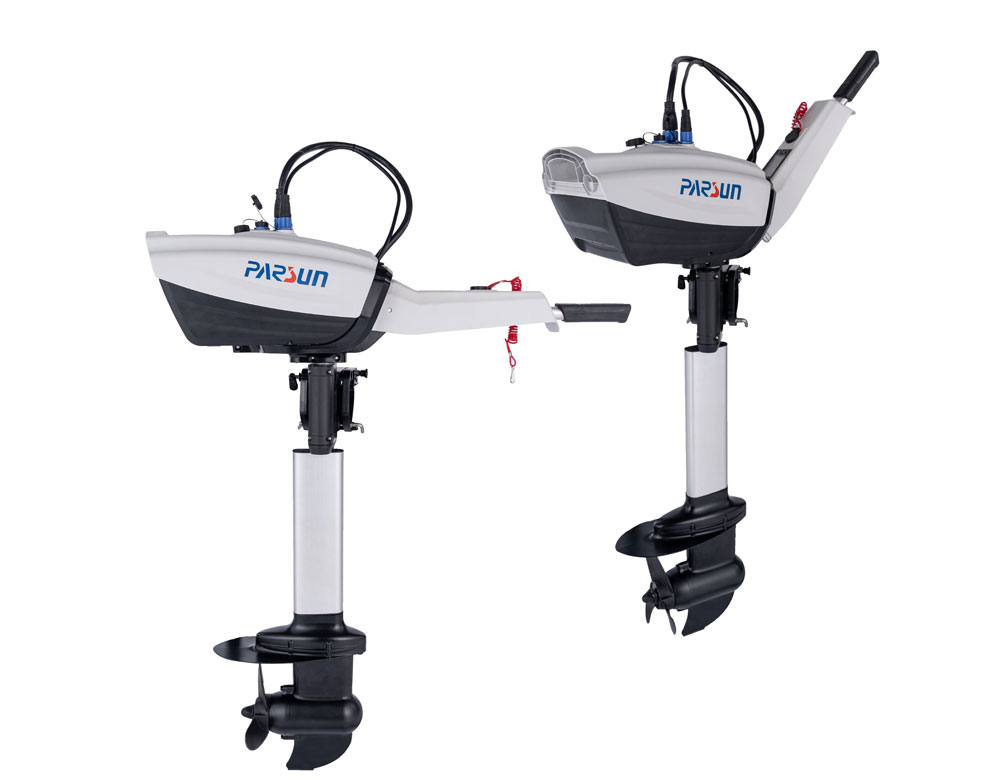

Joy1.2 is a portable 3HP electric outboard motor made for dinghies, fishing boats, and sailboats. It features a 1440Wh large integrated lithium battery for longer range. The electric motor is great for sustainable sailing experience.
LET'S GO! HAVE FUN!
Speed & Range
| Power (W) | Speed (mph/kph) | Runtime (hh:mm) | Range (mile/km) |
| 600W | 4.3 / 6.9 | 2:24 | 10.3 / 16.6 |
| 800w | 4.8 / 7.7 | 1:48 | 8.6 / 13.9 |
| 1000w | 5.2 / 8.3 | 1:26 | 7.5 / 12 |
| 1200w | 5.4 / 8.7 | 1:12 | 6.5 / 10.4 |
* This test data is sourced from PARSUN R&D lab, based on a 3 meter inflatable with 2 adults on board and in a calm river. The actual operating speed and range will vary depending on the boat type, load and water conditions.
Largest Capacity Battery
The high-density rechargeable battery is lightweight and rugged enough for harsh conditions, and boasts the largest capacity in its class for longer running time.
1440Wh lithium battery
The largest capacity lithium battery in its class, longer range.
Floating design
The battery is designed to float in the event it is dropped into water with water proof to IP67.
Up to 100% Only 2 Hours
Fast charger and standard charger as option.
Sleep Mode
The battery will automatically enter hibernation mode if left unused for an extended period, reducing battery loss.

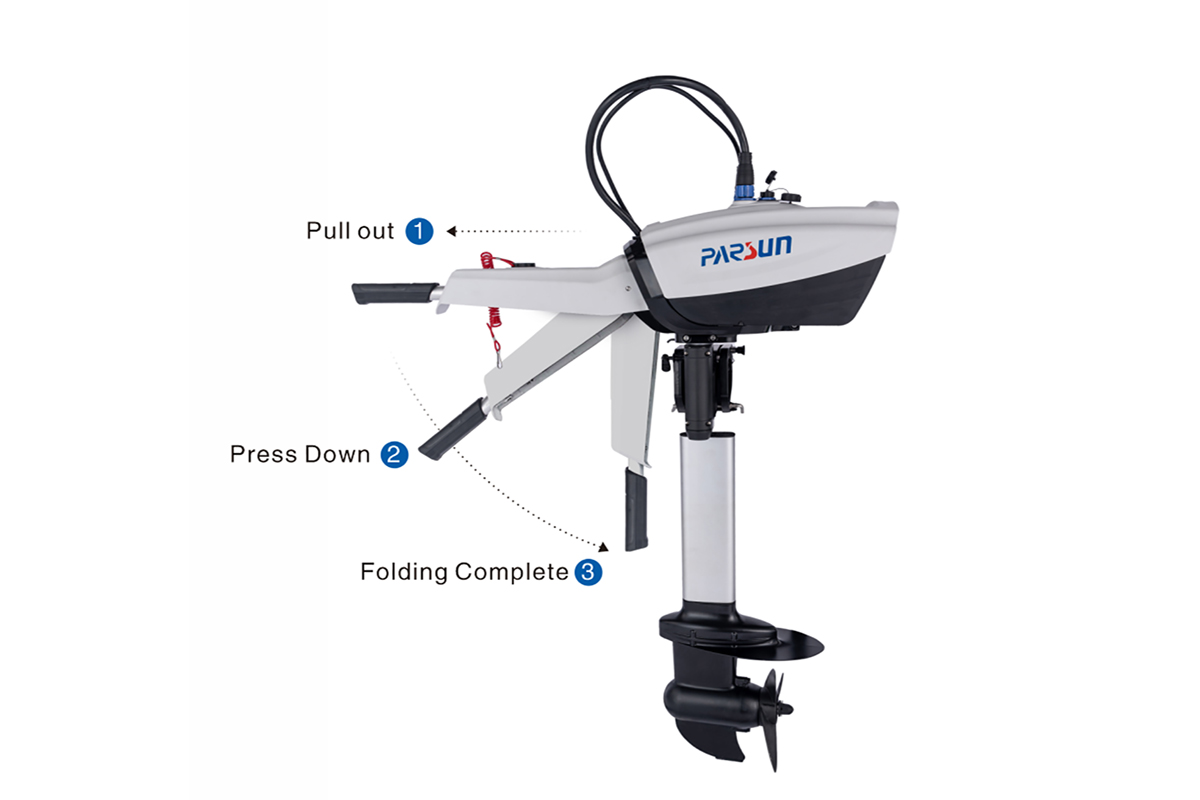

Portable design
The outboard and battery are detachable and packaged independently, taking up minimal space and easy to transport.

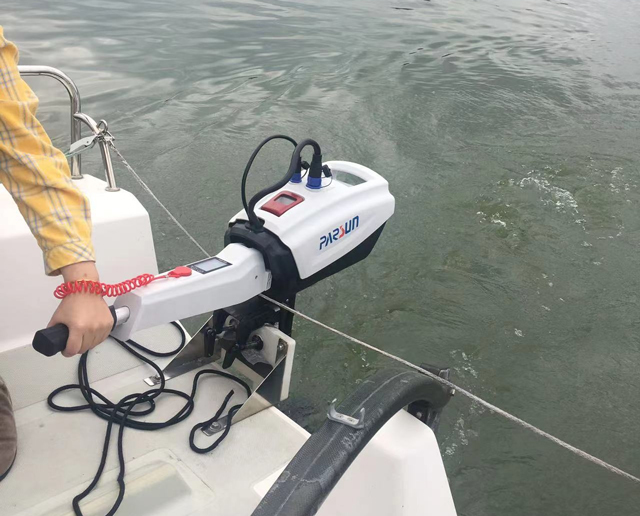

Visual Display
1
Digital LCD display
Provide real-time information on the operating status of the outboard.
2
Electric start
Press the power button down, and then you're ready to go. Eliminate the need for manual wire pulling.
3
Magnetic emergency switch
Allow for quick shutdown in emergency situations for added safety.
4
Stepless throttle replacement
For a clear, smooth, and pleasant operation.
5
Backlight display
The backlight makes readability easy in low light conditions.
SPECIFICATIONS
| Power | 1.2 kW (3HP equivalent) |
| Standard Battery | 1440 Wh lithium battery |
| Rated Voltage | 36V |
| Total Weight | 20kg(short) |
| Battery Weight | 9.2kg |
| Standard Charging | 8H |
| Fast Charging | 2H |
| External Battery | Yes, |
| Propeller | 3-9.25"*5.1"in |
| Trim/ Tilt Angle | 0°,5°, 10°,15°/ 75° |
| Shaft Length | 17.0in.(S) 21.8in.(L) |
| Steer System | Tiller Handle |
| Motor | PMSM |
| Direct Drive | Yes |
| Maintenance-Free | Yes |
| Range | 1 hr 12 minutes@rated power |
| Water Proof | IP67 |
| Rated RPM (Propeller Speed) | 1750 |
* The weight is measured with the short shaft version.
WHAT'S IN THE BOX
Main Shaft
Battery
Battery Charger
Emergency Stop Switch
User Manual
Have a Dealer Contact Me
Want to learn more about the product and get advice on purchase? Fill in the quick form within 3 minutes, and our local dealer near you will get in touch shortly.
FAQ
Q: Will the motor turn off automatically if I forget to power off after use
In order to save power, increase battery life and avoid battery waste, our engineers designed the automatic sleep function for the electric outboard. In other words, when you do not operate the machine for a long time, the machine will automatically enter the sleep state. If you need to use it again, you need to press the power button.The interval is set to 30 minutes.
Q: Can I use the electric outboard motor in the saltwater?
Yes! In addition, not only the joy1.2 electric outboard motor, but also all the outboard motors from Parsun are designed for extensive use in the saltwater. We choose high-quality aluminum alloy as the base material, and apply anodizing coating and powder coating on top of it. For more info, please check Parsun Blog: How do we make an outboard corrosion-resistant?
Q: How to store the battery during a long term
First, Even if the battery is not used, the battery will lose power after a long time, which is normal.
Second, the battery must be stored in a dry environment and packaged well.
Finally, do not store it when the battery is fully charged. 60% around is the ideal storage state. Please remember to charge the battery every three months.
